(Veeco)

Veeco is one of India's Well Recognized name in the switchgear industry today. The company made a modest beginning in the year 1976, at Mohali near Chandigarh, a premier Industrial town of Punjab. Dynamic Entrepreneurship and far sighted approach of the founding member steered the founding heights in spite of limited initial resources. Over the year, we have developed an elaborate and reliable infrastructure to maintain the quality and supply line to the best satisfaction of the users of the Veeco Products.

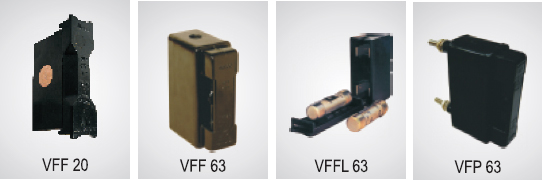

   H.R.C Fuse Fittings

   Owing to a long-term destination for our business, we are engaged in offering a wide gamut of HRC Fuse Fitting. The offered fitting is installed in electric board for monitoring electricity supply.


   H.R.C Fuse Base

   VEECO FUSE BASE are designed for easy panel mounting in switchboards for application in low voltage switchgear. They are used at places were continuity of supply is necessary for switching to an alternative source of supply from main supply& vice-versa.

Rate operational voltage (Ue) : 500 V.A.C.
Utilization category : AC-23A
No. of Poles : 1 Poles
Rated breaking capacity : 80 KA
Temp with stand Range (ambient) : -5 ° C TO 50 ° C
ISI MARK : AS PER IS 13703 (PART 2/SEC 1)
Rated frequency : 50 hz
Used Size of fuse links : 00, 01, 02, 03

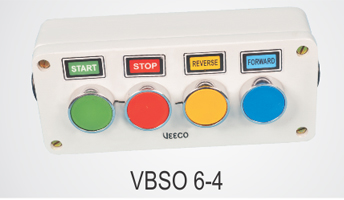

   Push Button Stations

   Push Button Station 30.5 MM AL.Casted VEECO push button Switches and pilot lights offer reliability, simplicity of connection, interchangeability and safety together with flexibility so important to panel assemblers and also meets the entire advanced requirement for the industrial applications. These switches and pilot lights are aesthetically designed and manufactured with personal attention. 1 to 6 elements (NO and NC) with push buttons, selector switches, and 1 or 2 elements (NO or NC) with illuminated switches.

Standard conformity : IS 13947 (part5/sec 1) 1993
Degree of protection :
IP 65
Rated insulation voltage : 500V, 50 Hz.A.C.
Rated thermal current : 10A
Rated operational voltage : 500V, 50HZ.A.C., 250VD.C.
Terminal capacity : Max. 2X1.5MM 2 Min.1X0.5MM2
Altitude : 3000M
Mechanical life : Over 1 Million operations
Operating Temp limit : -25 0 C to+50 0
Contact operation : Self wiping, slow break 1 NO or NC

   Fuse Puller

   VEECO FUSE PULLER are designed for application in low voltage switchgear. They are used at places were pulling and insert of fuse links. And vice-versa. FUSE puller is available in BAKELITE and ABS injection molded for high strength.

No. of Poles : 1 Poles
Temp with stand Range (ambient) : -5 ° C TO 50 ° C
For Size of fuse links : 00, 01, 02, and 03

   L.T.Control Switches

   VEECO L. T. Control switches are specially designed for heavy duty industrial applications. These are rugged in design and suitable for any adverse environment.

Load switches/ Main control switches/ Changeover switches/ System selector/ Phase selector- 50Hz, AC-1/AC-21 duty 32 A 63 A
Rated Operational Current
I e/AC-1/AC-21       up to 660 V
32 A 63 A
Power Rating for three phase loads
P AC-1/AC-21              at 415 V
18 KW 48 KW
Motor switches, 50 Hz, AC-3 and AC-23 duty
Power rating for these phase motors
P AC-3/AC-23 at 415 V
9.5 KW 25 KW
Rated Operational Current I e/AC-2/AC-3 at 415 V 20 A 48 A

   PUSH BUTTON SWITCHES

   VEECO push button Switches and pilot lights offer reliability, simplicity of connection, interchangeability and safety together with flexibility so important to panel assemblers and also meets the entire advanced requirement for the industrial applications.

Standard conformity : IS 13947 (part5/sec 1) 1993
Degree of protection :
IP 65
Rated insulation voltage : 500V, 50 Hz.A.C.
Rated thermal current : 10A
Rated operational voltage : 500V, 50HZ.A.C., 250VD.C.
Terminal capacity : Max. 2X1.5MM 2 Min.1X0.5MM2
Altitude : 3000M
Mechanical life : Over 1 Million operations
Operating Temp limit : -25 0 C to+50 0
Contact operation : Self wiping, slow break 1 NO or NC

   On Load Changeover Switch

   VEECOHEAVY DUTY ON LOAD CHANGEOVER SWITCHES are designed for easy panel mounting in switchboards for application in low voltage distribution circuit and motor circuits. They are used at places were continuity of supply is necessary for switching to an alternative source of supply from main supply& vice-versa.

Rate operational voltage (Ue) : 415V.A.C.
Utilization category : AC-23A
No. of Poles : 4 Poles (with switched neutral)
Rated insulation voltage (Ui) : 1000V
Temp with stand Range (ambient) : -5to50 C
Voltage (Uimp) : 10 kv
Dielectric strength at 50HZ : 5000KV

   Terminal Strips

   VEECO TERMINAL BLOCKS are designed for simple and economical grouping of any number of ways. For each assembly, only one end plate is required at the end. Terminal Block moulded in bakelite and neutral connection is also available.

Electrical ratings : 30 A at 500 V AC
60 A at 500 V AC
100 A at 500 V AC
Body and End Plate : Moulded Bakelite
Connecting link : Brass to IS 410
Screws : MS Passivated
Channel : Steel Passivated
End Clamp and Screw : Steel Passivated
Test Voltage : 2000 V between adjacent terminals and
2500 V between terminals and channels.

   Terminal Blocks

   Polythelene moulded strips are recommended for use in temperature for use in temperatures up to 50º C only where as bakelite moulded strips can be used in ambient temperature up to 100º C VTB-6 has enclosed terminals where as VTB-6, VTB-15, VTB-30, VTB-60 and VTB-100 have marked open terminals. All are available with 2, 3, 4, 6, 8, 10 and 12 number of ways.

Electrical ratings : 30 A at 500 V AC
60 A at 500 V AC
100 A at 500 V AC
Body and End Plate : Moulded Bakelite
Connecting link : Brass to casted
Screws : MS Passivated
Channel : Steel Passivated
End Clamp and Screw : Steel Passivated
Test Voltage : 2000 V between adjacent terminals and
2500 V between terminals and channels.

   Aviation Lights

   VEECO FUSE FITTING SWITCHES are designed for easy panel mounting in switchboards for application in low voltage switchgear. They are used at places were continuity of supply is necessary for switching to an alternative source of supply from main supply& vice-versa.

Rate operational voltage (Ue) : 415V.A.C.
Utilization category : AC-23A
No. of Poles : 1 Poles
Rated breaking capacity : 3 W
Temp with stand Range (ambient) : -5 ° C TO 50 ° C
ISI MARK : AS PER IS 13703 (PART 2/SEC 1)

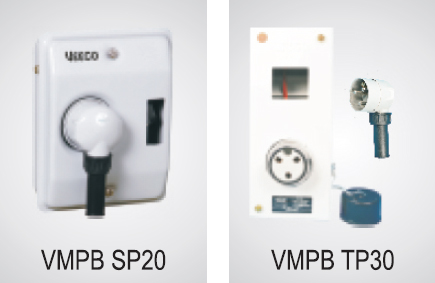

   Metal Clad Plug & Sockets

   VEECO plug and sockets are specially designed for heavy duty industrial applications. These are rugged in design and suitable for any adverse environment. The housing of plug and sockets are die casted from non-corroding Aluminium alloy for better strength. The interiors of the sockets are moulded out of high grade, flame retardant, non-hygroscopic D.M.C. material for better mechanical & electrical properties. These are also available in powder coated sheet steel enclosure. Due to its rugged design it is suitable for wide variety of domestic, commercial & industrial applications such as portable machines, hand power tools, modern office power equipments, air conditioner, refrigerators, industrial oven, portable welding sets, geysers etc.

Rating(in Amp) : 10A 20A 20A 30A
Type : Plug &Socket Plug &Socket Plug &Socket Plug &Socket
No. of poles : 2+E 2+E 3+E 3+E
Volt : 250 V 250 V 440 V 400 V
Insulation voltage : 500 V 500 V 660 V 660 V
Cat No. : VMP&S 10/2 VMP&S 20/2 VMP&S 20/3 VMP&S 30/3
Thermal rating : 12A 25A 25A 32A
Max. HP forRated voltages : 3.5HP 240V 6.0HP 240V 12.5HP 415V 20.0HP 415V
MCB protection : 16A 25A 25A 32A

   Bakalite Plug & Socket

   Manufacturer & Supplier of Bakelite Plug & Socket. Our product range also comprises of HRC Fuse Fitting, HRC Fuse Base Open Types and LT Control Switch.

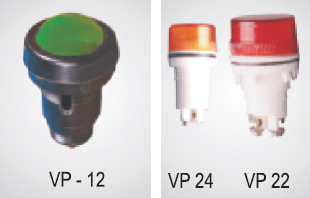

   Pilot Lamp Holders

   Offering you a complete choice of products which include Pilot Lamp Holders such as Pilot Lights In Bakelite Body and Pilot Lights In ABS Body.
